Castables & Gunning Mixes for Mixer

Refractory castables and hot gunning mixes engineered for mixer furnace working linings and hot repair. Castable grades JH-YLK70-X and JH-TCK80-X for monolithic linings; gunning grades JH-HTB1 and JH-HTB2 for hot patching. Offers high strength, excellent slag resistance and good thermal shock stability.

Application

Mixer furnace working lining, slag line, tap hole, hearth; hot repair of damaged linings

Advantages

High strength, excellent slag resistance, good thermal shock stability, convenient hot application

Supporting Refractories

Compatible installation and gunning equipment available

Dimensions

Customizable upon request

Send Email

$https://d567951.xzgoogle.com/wp-content/uploads/2026/07/refractory_coating_powder-main.jpg$

$https://d567951.xzgoogle.com/wp-content/uploads/2026/07/refractory_coating_powder-photo01.jpg$

$refractory coating powder main$

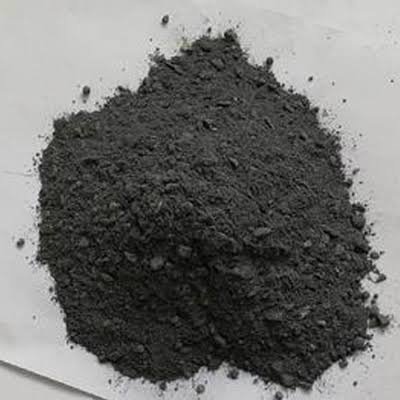

$refractory coating powder photo01$

Introduction

Mixer furnaces store and homogenize hot metal while maintaining temperature, with linings subjected to severe thermal shock, slag corrosion and mechanical impact. This product family includes two castable grades (JH-YLK70-X and JH-TCK80-X) for monolithic working linings, and two hot gunning grades (JH-HTB1 and JH-HTB2) for rapid hot repair without cooling downtime. The castables deliver high strength and excellent slag resistance with Al₂O₃ content of 70% and 80% respectively. The gunning mixes offer strong slag resistance and convenient application with low rebound loss.

Key Advantages

High Strength & Slag Resistance

Castable grades deliver cold crushing strength of 40–50 MPa at 110℃ and 55–60 MPa at 1450℃, ensuring reliable performance under severe service conditions.

Hot Repair Without Downtime

Gunning mixes enable direct application onto hot furnace surfaces without cooling, significantly reducing maintenance time and production interruption.

Zone-Specific Formulations

Available in multiple grades tailored for different zones (slag line, tap hole, hearth) and applications (monolithic lining vs. hot patching) to match specific service conditions.

Specification

Item	JH-HTB1	JH-HTB2	Test Condition
Chemical Composition (%): ≥	Al₂O₃	65	65
	MgO	7	–
	SiC+C	–	10
Bulk Density (g/cm³): ≥	110℃×24h	2.3	2.3
Bulk Density (g/cm³): ≥	1350℃×3h	2.4	2.4
Cold Crushing Strength (MPa): ≥	110℃×24h	6	6
Cold Crushing Strength (MPa): ≥	1350℃×3h	30	30
Modulus of Rupture (MPa): ≥	110℃×24h	3	3
Modulus of Rupture (MPa): ≥	1350℃×3h	6	6

Packaging: Woven bag — Specifications: 1000kg/bag, 500kg/bag, 50kg/bag, 25kg/bag

Precautions: Keep dry. Do not use if caked

Shelf life: 6 months

Item	JH-HTB1	JH-HTB2	Test Condition
Chemical Composition (%): ≥	Al₂O₃	65	65
	MgO	7	–
	SiC+C	–	10
Bulk Density (g/cm³): ≥	110℃×24h	2.3	2.3
Bulk Density (g/cm³): ≥	1350℃×3h	2.4	2.4
Cold Crushing Strength (MPa): ≥	110℃×24h	6	6
Cold Crushing Strength (MPa): ≥	1350℃×3h	30	30
Modulus of Rupture (MPa): ≥	110℃×24h	3	3
Modulus of Rupture (MPa): ≥	1350℃×3h	6	6
