Introduction

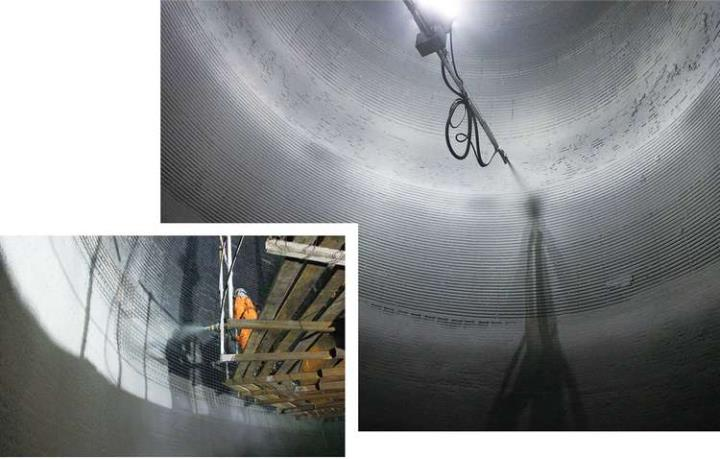

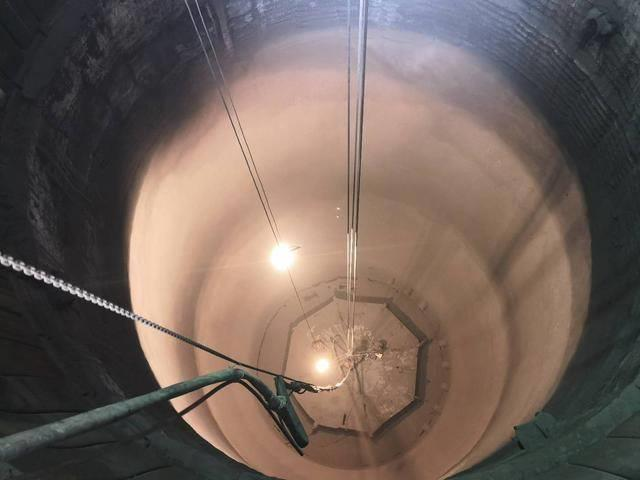

This spray-applied lining repair technology enables rapid blast furnace relining without the extended downtime required for traditional brickwork. The material is applied using wet gunning equipment, forming a dense, high-strength lining that bonds securely to the existing furnace shell. Different grades are formulated for specific furnace zones—from the furnace top and stack down to the hearth—with tailored alumina and silicon carbide content to match varying service temperatures and wear conditions. The system has been successfully applied in numerous large blast furnaces across China.
Key Advantages
01
Rapid Construction & Reduced Downtime
Eliminates traditional brick relining shutdowns, significantly shortening repair cycles and enabling faster return to production.
02
High Strength & Excellent Adhesion
Forms a dense, durable lining with strong bond to existing shell, delivering reliable performance under severe mechanical and thermal loads.
03
Zone
Specific Formulations – Four grades (JH-GP-1 through JH-GP-4) tailored for different furnace zones from top to hearth, ensuring optimal performance at each location.
Specification
| 项目 | JH-GP-1 | JH-GP-2 | JH-GP-3 | JH-GP-4 | |
|---|---|---|---|---|---|
| 化学成分(%)：≥ | Al₂O₃ | 35 | 45 | 48 | 70 |
| SiC | – | – | 4 | 9 | |
| 体积密度(g/cm³)：≥ | 110℃×24h | 1.7 | 2.15 | 2.30 | 2.60 |
| 线变化率(%) | 600℃×3h | -0.3~+0.3 | -0.3~+0.3 | -0.3~+0.3 | – |
| 800℃×3h | – | -0.3~+0.3 | -0.5~+0.5 | -0.5~+0.5 (1450℃) | |
| 耐压强度(MPa)：≥ | 110℃×24h | 20 | 30 | 35 | 40 |
| 600℃×3h | 25 (300℃) | 35 | 45 | 50 (1000℃) | |
| 800℃×3h | 25 (600℃) | 40 | 45 | 60 (1450℃) | |
| 用途 | 下降管 | 炉顶封罩 及上升管 | 炉身上部至炉 喉钢砖 | 炉身下部,炉腰 及炉腹 | |
| 包装方式：编织袋包装；规格1000kg/袋、500kg/袋、50kg/袋、25kg/袋。 注意事项：产品注意防潮，如已结块请勿使用。 保质期：6个月 | |||||
